Anti-Winding Twin-Shaft Mixer

Twin-shaft mixing for shredded waste, designed to reduce tangling and keep discharge steady for downstream pumping or co-processing
Anti-Winding Twin-Shaft Mixer
Anti-Winding Twin-Shaft Mixer

Anti-winding twin-shaft mixers are designed for solid waste processing lines where shredded material can wrap around moving parts and clump during mixing. They blend the crusher output into a more even mix, and they can also take liquid or semi-solid additions when the recipe calls for it. Continuous, even discharge keeps the material more consistent for pumping and for the next step, including incineration. The anti-winding design uses two parallel shafts rotating in opposite directions, with blade or paddle combinations that keep material moving and help break up clumps. Thanks to the anti-winding design, there's less wrap-around and build-up, so the mixers run smoother and the discharge stays more stable.

Technical Specifications
Model CH-10 CH20 CH30 CH50 CH100
Capacity (m³/h) 10 20 30 50 100
Blade Diameter (mm) 280 480 480 480/630 750
Main Shaft Speed (rpm) 35-50 35-50 35-55 45-65 40-60
Motor Power (kW) 15-22 15-30 22-45 30-55 45-75
Pitch (mm) 250 200 250 350/300 400
Center Distance (mm) 250 350 350 350/440 550
Overall Dimensions (L × W × H) (mm) 3200*650*550 7000*1100*1000 7200*1400*1000 8200*1200*1800 8300*2400*2700
Main Components
    Anti-Winding Twin-Shaft Mixer

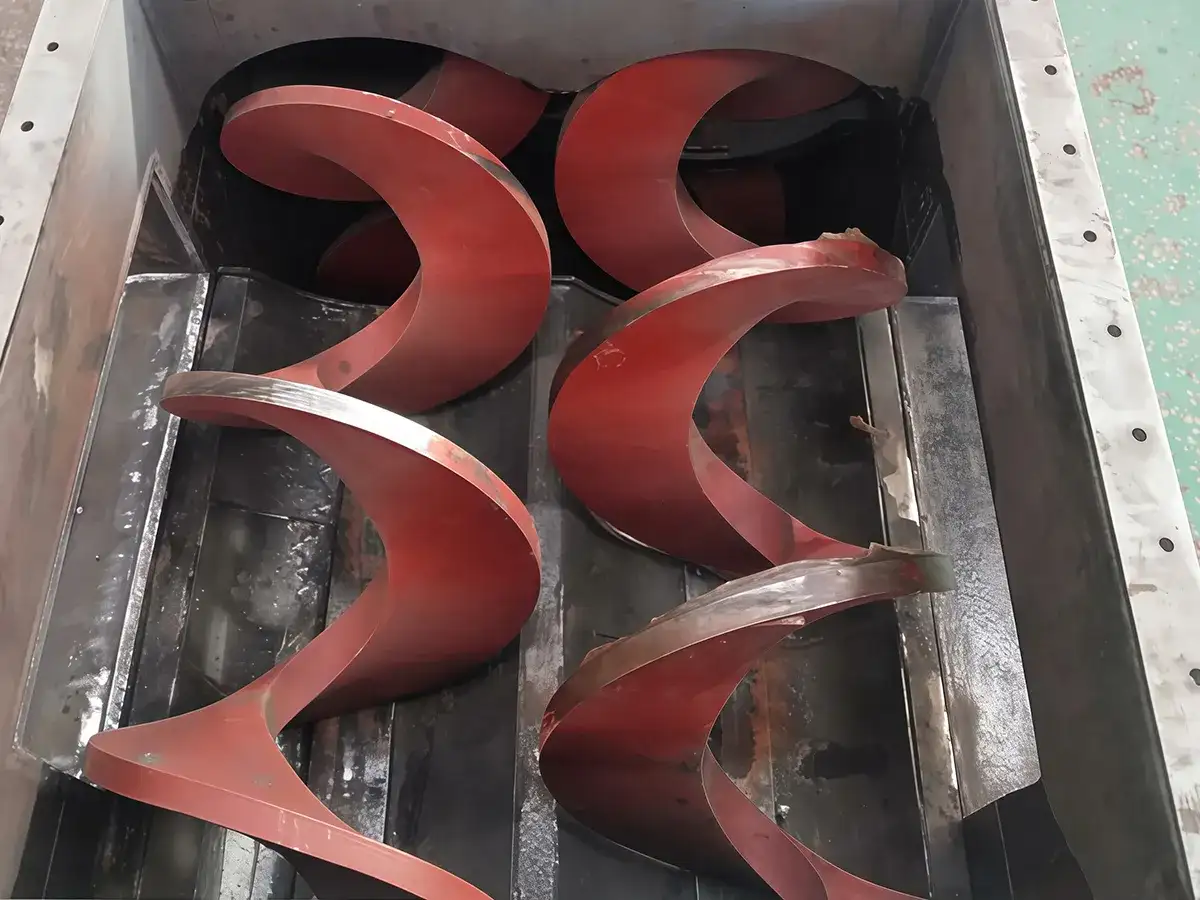

    The anti-winding mixer features a shaftless design, using shaftless spiral blades to help reduce wrap-around

Features
  • The mixing chamber has a cylindrical shape that helps keep material moving without dead zones, supporting more uniform mixing.
  • A hydraulic discharge valve is installed at the outlet, and the opening can be adjusted to control the discharge rate.
  • A continuous level sensor can be added when needed to monitor the material level and keep a buffer space inside during operation, which adds an extra safety margin.
  • The mixing shafts have a special sealing design that resists oil and acid/alkali conditions, helping prevent leakage.
